Applied Science and Biotechnology Journal for Advanced Research

1. Introduction

Batteries are essential electrochemical devices that power a wide range of devices, including electric vehicles (EVs), renewable energy systems, and portable electronics. They store chemical energy and transform it into electrical energy through regulated redox reactions. Fundamentally, batteries are made up of an electrolyte that facilitates ion movement, an anode (negative electrode), a cathode (positive electrode), and current collectors that allow electrons to flow to an external circuit. The complex interaction of these elements, which must preserve structural and chemical stability under operating pressures, determines the effectiveness and durability of batteries. However, corrosion—a deterioration process that impacts electrodes, current collectors, and interfaces as a result of undesired chemical or electrochemical reactions with the surrounding environment, particularly the electrolyte—is a persistent issue that compromises battery performance. Battery corrosion causes capacity fading, elevated impedance, and eventual failure by dissolving, passivating, or structurally breaking down active materials and supporting structures. The nature of batteries, corrosion mechanisms, consequences, and relevant statistics are examined in this review, which highlights the importance of corrosion in developing battery technology by referencing recent studies.

The basic functioning of a battery depends on reversible electrochemical processes. For example, in lithium-ion batteries (LIBs), the most common technology in contemporary applications, lithium ions move via an organic electrolyte between a metal oxide cathode (such as LiCoO₂) and a graphite anode, while electrons move externally to power devices. Likewise, in lead-acid batteries (LABs), which are extensively utilized in stationary storage and automobiles, lead and lead dioxide are converted in an electrolyte of sulfuric acid. The efficiency of these systems is compromised by corrosion, despite their extensive use. When active materials or current collectors contact with the electrolyte, oxygen, or contaminants at the electrode-electrolyte interface, corrosion occurs in batteries. According to studies on electrochemical stability, the aluminum current collector in LIBs, for instance, may deteriorate when LiPF₆-based electrolytes are present, either dissolving into the

estimations indicate that electrode-electrolyte interactions may be responsible for up to 20% of LIB capacity loss over extended cycling [8]. With a manufacturing capacity of about 120 GWh, the LIB market generated $40.5 billion in revenue globally in 2020; however, corrosion-induced failures lead to shorter lifespans and safety risks, which raise replacement costs [3]. According to research, between 30 and 50 percent of battery failures in automotive applications are caused by corrosion of the lead grids in lead-acid batteries, which make up a significant portion of stationary storage [2]. Furthermore, the growing EV market which is expected to top 4.7 million units by 2021, significantly exceeding previous projections highlights how urgent it is to address corrosion in order to satisfy sustainability and performance targets [9]. According to these figures, corrosion is both a technical and financial concern, which motivates research into preventative measures including coatings, electrolyte additives, and new materials.

2. Literature Review

The deterioration of metallic parts, like current collectors, in battery systems is frequently caused by electrochemical reactions with electrolytes or external influences. Zhu et al. study the corrosion of aluminum current collectors in high-voltage lithium-ion batteries, observing that anodic dissolution happens when the potential surpasses 4.2 V versus Li/Li⁺ [10]. The study emphasizes how hydrofluoric acid (HF), which is produced when electrolyte salts like LiPF₆ break down, speeds up aluminum corrosion and creates a passive AlF₃ layer. Although somewhat protective, this layer eventually raises resistance and lowers battery efficiency. A gap in workable solutions for high-voltage LIBs is highlighted by the authors, who stress the necessity of electrolyte compositions that reduce HF formation. According to Njema et al.'s analysis of the function of current collectors in LIBs, copper, when utilized at the anode, is less likely to corrode than aluminum at the cathode at low potentials (0.01–0.25 V vs. Li/Li⁺) [11]. But they warn that, a factor that is frequently disregarded in LIB research, copper can experience pitting corrosion when there are chloride impurities present in the electrolyte. The comprehensive understanding of battery degradation is limited, according to their findings, by the relative neglect of current collectors in comparison to cathode materials or electrolytes.

Halloysite nanotubes (HNTs) are applied to the Zn anode in the study done by Xu et al., to enhance aqueous zinc-ion batteries (AZIBs) and address issues such as corrosion, capacity fading, and hydrogen evolution. In addition to directing Zn2+ ion plating, the HNT coating reduces resistance and side reactions. HNTs-Zn/MnO₂ batteries maintain 79% of their capacity at 3C after 400 cycles, which is better than bare Zn anodes. This new interfacial modification is a practical way to increase battery longevity and performance for energy storage applications[16].

Recent research has placed a strong emphasis on mitigation techniques. A carbon cloth substrate covered with silver is suggested by Tian et al. as a means to divert lithium dendrite growth from separators in LIBs, lowering the possibility of short circuits [17]. They do admit, though, that the practicality of silver is limited by its vulnerability to corrosion in specific electrolytes, such as those that include sulfur compounds. This emphasizes how difficult it is to strike a balance between durability and functionality in innovative materials. Rahman et al., on the other hand, talk about aluminum doping in nickel-manganese-cobalt (NMC) cathodes and point out that although it improves structural stability, collector corrosion is not immediately addressed by it [18]. According to their review, reducing corrosive byproducts can be achieved indirectly by enhancing the chemistry of batteries as a whole.

3. Types of Corrosion

There are different types of corrosion that a metal undergoes through. In this paper, few are mentioned and discussed upon elaborately.

A. Galvanic Corrosion

Galvanic corrosion is an electrochemical process that accelerates the anodic material's degradation when two dissimilar metals come into electrical contact with one another while an electrolyte is present. This phenomena is a serious issue with battery systems, particularly when there are multiple metal components used as connectors, casings, or current collectors. Because of the potential difference between the metals, electrons move from the more anodic metal to the more cathodic metal, causing localized anodic material degradation and eventual battery failure.

Recent studies have concentrated on electrolyte engineering and improved material coatings as solutions to the problem of galvanic corrosion. To lessen undesired corrosion reactions, ionic liquid-based electrolytes with minimal reactivity toward metallic components have been developed. Furthermore, corrosion inhibitor-embedded self-healing coatings have been investigated as a dynamic defense against metal deterioration in battery systems [25]. Understanding and preventing galvanic corrosion is still essential to enhancing battery safety and dependability as technology develops to achieve higher energy densities and longer lifespans.

B. Electrolyte Leakage Induced Corrosion

Battery performance, safety, and lifespan are all greatly impacted by corrosion caused by electrolyte leakage, a crucial failure mechanism. This occurrence happens when mechanical damage, inadequate sealing, or extended operational degradation cause the electrolyte—typically a highly conductive and chemically reactive substance—to escape from the battery shell. Electrochemical corrosion occurs when the electrolyte leaks and comes into contact with metal parts of the battery or outside metallic structures [26].

The materials used in the battery and the electrolyte's composition determine the type of corrosion. For example, lithium salts like lithium hexafluorophosphate (LiPF₆) dissolved in organic carbonate solvents make up the electrolytes of lithium-ion batteries. When LiPF₆ leaks, it hydrolyzes in the presence of ambient moisture to generate hydrofluoric acid (HF), a highly corrosive substance that aggressively attacks metal surfaces, such as copper and aluminum current collectors, resulting in safety risks and performance deterioration [27]. In addition to compromising the battery's structural soundness, this deterioration process raises internal resistance, which might result in thermal runaway and additional heat generation.Corrosion shows up differently in aqueous electrolyte-based batteries, such lead-acid and nickel-metal hydride (NiMH) batteries. Sulfuric acid (H₂SO₄) leakage in lead-acid batteries accelerates the development of lead sulfate (PbSO₄), which is frequently irreversible and results in battery failure, by rapidly oxidizing lead components and surrounding metallic structures [28]. Similar to this, leaks of potassium hydroxide

Although the corrosion resistance of stainless steels is based on chromium-rich oxide layers, chromium carbide precipitation can happen along grain boundaries when the steel is subjected to high temperatures during production or cycling. This results in anodic sites that dissolve preferentially in the presence of the electrolyte and depletes the nearby chromium areas, decreasing their resistance to corrosion [31]. Similar to this, fluoride ions from electrolyte breakdown can cause intergranular corrosion in aluminum current collectors. These ions attack the precipitates at the grain boundary, resulting in localized material loss and possible electrical disconnection [32].

Microstructure plays a critical role in intergranular corrosion in lead-acid batteries, where the formation of lead sulfate during charge-discharge cycles can cause grain boundary attack on the lead-based electrodes. Antimony and tin inclusions are examples of impurities and secondary phases that can serve as corrosion initiation sites, causing the corrosion to spread further along the grain boundaries and erode the electrode structure [33]. Furthermore, hydrogen embrittlement can hasten intergranular cracking in battery alloys, particularly in nickel-metal hydride (NiMH) and lithium-metal batteries. The creation of voids and cracks is encouraged by hydrogen absorption at the grain boundaries, which subsequently makes more corrosion and mechanical failure easier [34].

D. Sulphur Corrosion

A crucial degradation phenomenon that has a major impact on battery performance is sulpur corrosion, especially in lead-acid and lithium-sulfur (Li-S) battery systems. Sulfur-containing compounds and battery components interact chemically and electrochemically to cause capacity fade, elevated internal resistance, and a shorter cycle life. Polysulfide shuttle effects, sulfation reactions, and the creation of corrosive sulfur species that react with metallic materials are the fundamental mechanisms of sulfur corrosion.

Because of its high theoretical capacity, sulfur is used as the cathode material in lithium-sulfur batteries. On the other hand, elemental sulfur experiences a sequence of electrochemical reactions during charge and discharge cycles, resulting in the formation of soluble lithium polysulfides (Li₂Sₙ, where 2 ≤ n ≤ 8) that move through the electrolyte.

Performance, longevity, and safety are all greatly impacted by this phenomena, which happens in a variety of battery chemistries, including solid-state, lead-acid, and lithium-ion (Li-ion) batteries. Electrolyte decomposition, metal corrosion at high temperatures, and electrode material degradation are the main causes of thermal corrosion. Transition metal migration and dissolution from the cathode is one of the main causes of heat corrosion in batteries. High temperatures in Li-ion batteries cause cathode materials like lithium cobalt oxide (LCO) and nickel manganese cobalt oxide (NMC) to degrade. Impedance and capacity fading after repeated charge-discharge cycles are increased when transition metal ions such as nickel (Ni), manganese (Mn), and cobalt (Co) are released into the electrolyte and form resistive surface coatings on the anode [42]. Furthermore, the solid electrolyte interphase (SEI) on the anode breaks down more quickly at high temperatures, exposing the electrode material to the electrolyte and encouraging additional corrosion and lithium consumption [43].

Electrolyte decomposition is another major contributor to thermal corrosion. At elevated temperatures, common liquid electrolytes, composed of lithium salts such as LiPF₆ in organic carbonate solvents, decompose and release corrosive by-products like HF (hydrofluoric acid) [44]. The presence of HF leads to aggressive dissolution of the cathode’s active material, further exacerbating capacity loss and shortening battery lifespan. Additionally, HF-induced corrosion of current collectors, such as aluminum (Al) in the cathode, results in the formation of an insulating layer that hinders electronic conductivity and electrochemical activity [45].

High temperatures hasten the oxidation of lead (Pb) into lead dioxide (PbO₂) and the subsequent solubility of lead sulfate (PbSO₄), which is the primary site of thermal corrosion in lead-acid batteries. Lead grid corrosion lowers mechanical stability, which causes grid expansion, active material shedding, and battery failure [46]. Similar to this, high temperatures can cause irreversible sulfation, which results in the formation of massive PbSO₄ crystals that hinder efficient charge acceptance and lower battery performance overall [47]. Thermal corrosion can also affect solid-state batteries, which use solid electrolytes rather than liquid ones, however the processes by which they

The pH and content of the electrolyte are also important factors in corrosion mechanisms. Electrolyte degradation in aqueous batteries, such as lead-acid and zinc-based systems, causes evolution processes involving hydrogen and oxygen, which exacerbate corrosion at the electrode surfaces [56]. Despite being intended to be stable, non-aqueous electrolytes in LIBs can decompose at high voltages and produce corrosive species that target the anode and cathode [57]. Furthermore, high operating temperatures, moisture, and contaminants hasten corrosion and promote dendrite development in lithium-metal batteries, which can result in catastrophic failures and short circuits [58].

4. Factors Affecting Corrosion

Corrosion in batteries is an important problem that can negatively impact how long they last, how well they work, and how safe they are to use. When batteries corrode, it can lead to reduced performance and reliability, which means they may not hold a charge as long or provide as much power as they should. By understanding the different factors that contribute to corrosion, such as the materials used in the battery, temperature conditions, and how the battery is handled, we can work towards creating better battery designs. Improving these designs could help us make batteries that not only last longer but also operate more effectively in various situations. This knowledge is essential for developing safer batteries that can meet the demands of modern technology and daily use.

A. Temperature and Humidity

Temperature and humidity are key factors that significantly affect the performance and lifespan of batteries. Elevated temperatures can accelerate the chemical reactions occurring inside the battery. This increased reaction rate may lead to the breakdown of the electrolyte, which is essential for the battery's operation, and it can also increase the rate of corrosion of the battery's components. For instance, in lithium-ion batteries, high temperatures can encourage excessive growth of the solid electrolyte interphase (SEI) layer. While this layer is important for battery function, if it becomes too thick, it can hinder ion transport efficiency, resulting in a decrease in capacity over time [59].

Sulfation occurs when lead sulfate crystals accumulate on the battery plates, which negatively impacts overall battery performance. Research has shown that incorporating corrosion inhibitors and stabilizers into the electrolytes can make a significant difference, enhancing the longevity and functionality of the battery [61].

Additionally, recent research has been dedicated to exploring alternatives like ionic liquids and solid-state electrolytes. These materials are designed to mitigate the corrosive effects often seen with traditional liquid electrolytes. Ionic liquids, which are salts that remain liquid at room temperature, have unique properties that can provide better stability and safety for batteries. Solid-state electrolytes, which eliminate the need for liquid, can offer even greater stability, lower volatility, and fewer unwanted side reactions. These attributes make ionic liquids and solid-state electrolytes promising options for developing next-generation batteries that last longer and perform better than current technologies [62].

C. Current Density ans Charge Discharge Cycles

The way batteries are charge has a significant effect on how quickly they can corrode. When batteries are charge or discharge with a high current, it can cause overheating in specific areas. This localized heat can speed up a process called electrochemical corrosion, which basically means the battery material starts to break down because of chemical reactions.

When a battery goes through many charge and discharge cycles, the materials inside experience mechanical stress. This stress can lead to tiny cracks forming in the electrodes, the parts of the battery that store energy. When these cracks appear, they expose fresh surfaces to the surrounding environment, making them more vulnerable to corrosion.

For lithium-ion batteries, charging them too quickly can lead to some problems. One of these is called lithium plating, where lithium metal builds up on the surface of the electrode instead of staying dissolved in the electrolyte. When this happens, the lithium reacts with the electrolyte to create a protective layer known as the solid electrolyte interphase (SEI). However, this layer can become unstable and resistive, meaning it doesn’t let ions flow easily, which can harm the battery's performance.

For example, advanced techniques like atomic layer deposition (ALD) and plasma-enhanced chemical vapor deposition (PECVD) allow for the creation of very thin protective coatings. These ultra-thin films can protect the battery while ensuring that its performance does not suffer. Such innovations aim to enhance battery durability, which is essential for the development of long-lasting energy storage solutions [63].

By focusing on these materials and techniques, researchers and engineers are working toward creating batteries that not only last longer but also perform reliably under a variety of challenging conditions. It’s an exciting area of study with the potential to greatly impact the future of energy storage technology.

5. Effects of Corrosion on Battery Performance

Corrosion is a process that can really cause problems in batteries. When parts of the battery start to corrode, it can weaken the structure and make it less reliable. This means that the battery may not work as well as it should, leading to different kinds of issues during its operation. For instance, if the connections or components of the battery are corroded, it can disrupt the flow of electricity. This may result in reduced power output or even cause the battery to fail entirely in some cases. As a result, the performance of devices that rely on that battery can be affected too.In summary, corrosion is a serious issue that not only compromises the strength of the battery parts but also impacts how well it performs, causing various operational problems along the way. Keeping an eye on corrosion and addressing it promptly can help maintain battery efficiency and reliability[60].

A. Capacity Fading

Corrosion has a critical effect on battery performance, leading to something known as capacity fading. Capacity fading refers to the gradual reduction in a battery's ability to hold charge over time. This issue arises primarily due to the loss of active material, which can occur for a couple of reasons. One main contributor is electrode dissolution, where parts of the battery electrode break down and dissolve into the electrolyte, the fluid inside the battery that facilitates the movement of ions.

As a result, the batteries struggle to hold a charge, and their cycle life gets shortened. Studies have shown that this kind of corrosion damage can lead to early failure of the batteries. Specifically, it limits the number of times you can charge and discharge a battery before it starts to perform poorly [64].

To tackle the issue of corrosion, researchers and manufacturers are trying several different approaches. One strategy involves using materials that are resistant to corrosion in the first place. This means that the electrode materials would be less likely to degrade over time. Another approach is adding stabilizers to the electrolytes, which can help keep the battery's performance consistent and reduce the rate of corrosion. Additionally, there is ongoing research into self-healing coatings that can be applied to the surfaces of electrodes. These coatings can protect the electrodes from deteriorating further by responding to damage and repairing themselves [63].

Scientists are also looking into artificial solid electrolyte interphases (SEI layers). These layers can adapt over time, adjusting to the conditions that come with repeated charging and discharging cycles. By maintaining their structural integrity, they help prolong the life of the electrodes and the overall battery [60].

Furthermore, there are advancements in battery management systems (BMS). These systems are designed to regulate charging cycles more effectively. By preventing overcharging and deep discharging, the BMS can help reduce the wear and corrosion of electrodes, allowing the batteries to maintain their efficiency for a longer period [66].

C. Increased Internal Resistance

Corrosion can have a significant impact on the performance of batteries, particularly in how they operate over time. When corrosion occurs, it produces byproducts like oxide films and insoluble deposits. These byproducts create a barrier within the battery, which increases its internal resistance. When resistance goes up, it causes more energy to be lost as heat. This heat loss is not just a minor issue; it can seriously reduce the battery's efficiency and power output, which is especially concerning for high-power applications such as electric vehicles and renewable energy systems. Batteries used in these contexts, where performance is critical, suffer greatly from the effects of internal resistance [60].

Elevated temperatures can accelerate the chemical reactions occurring inside the battery. This increased reaction rate may lead to the breakdown of the electrolyte, which is essential for the battery's operation, and it can also increase the rate of corrosion of the battery's components. For instance, in lithium-ion batteries, high temperatures can encourage excessive growth of the solid electrolyte interphase (SEI) layer. While this layer is important for battery function, if it becomes too thick, it can hinder ion transport efficiency, resulting in a decrease in capacity over time [1].

Humidity poses additional challenges for battery life and safety. When the air is humid, it can promote the leakage of the electrolyte and increase the conductivity of the environment around the battery. This increased conductivity can lead to the formation of unwanted structures called dendrites. If these dendrites grow large enough, they can cause short circuits within the battery, which may eventually lead to battery failure. Studies focusing on lead-acid batteries have shown that exposure to humid conditions can greatly accelerate grid corrosion, thereby significantly reducing the overall lifespan of the battery [64].

Moreover, extreme variations in temperature can create mechanical stress on the components of the battery due to thermal expansion and contraction. This mechanical stress can result in the formation of micro-cracks within electrode materials. When these cracks occur, they expose new surfaces to the corrosive environment, exacerbating the problem of corrosion. To address these issues, researchers and engineers are exploring effective thermal management strategies, such as utilizing phase change materials and developing advanced cooling techniques. These strategies aim to mitigate the negative effects of temperature and humidity on battery performance and extend the life of batteries in various applications [63].Corrosion-related failures in batteries can create serious safety issues. One major concern is how the surfaces of the electrodes can deteriorate over time. When this happens, it can cause short circuits. A short circuit can lead to thermal runaway, a dangerous situation where the temperature of the battery rises uncontrollably. This heating can potentially cause battery fires or even explosions. In the case of lead-acid batteries, corrosion can affect the grids within the battery.

their environment, presents significant challenges across various industries. Accurate detection and monitoring are essential to prevent structural failures and ensure safety. Advanced techniques such as Electrochemical Impedance Spectroscopy (EIS), Scanning Electron Microscopy (SEM), and X-Ray Diffraction (XRD) are pivotal in understanding and mitigating corrosion processes.

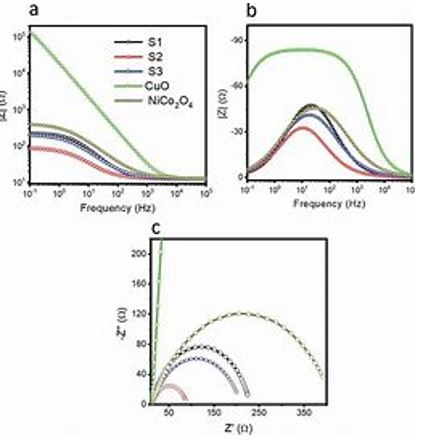

A. Electrochemical Impedence Spectroscopy

EIS is a non-destructive electrochemical technique that measures a system's impedance over a range of frequencies, providing insights into the electrochemical processes at the material's surface. This method is particularly valuable in diagnosing and analyzing various corrosion processes, including pitting corrosion in stainless steels and crevice corrosion in marine environments [66].

The technique involves applying a small perturbation to the system and measuring the response, which helps elucidate mechanisms such as charge transfer, diffusion, and adsorption. For instance, EIS has been effectively utilized to monitor the degradation of organic coatings over time, providing real-time data on corrosion rates and mechanisms [67].

However, the interpretation of EIS data relies heavily on selecting appropriate equivalent circuit models (ECMs) that accurately represent the system under study. An assessment of commonly used ECMs has highlighted the importance of model selection in accurately diagnosing corrosion processes [68].

By analyzing diffraction patterns, researchers can determine specific compounds present in corrosion products, such as oxides, hydroxides, or sulfides. This information is vital for understanding corrosion processes and developing strategies to mitigate material degradation. For instance, identifying the formation of specific iron oxides on steel surfaces can indicate the type of corrosion occurring and inform the selection of appropriate protective measures [70].

Moreover, XRD can be employed to study the effects of various environmental conditions on corrosion behavior. By exposing materials to different corrosive environments and analyzing the resulting corrosion products, researchers gain insights into factors influencing corrosion rates and mechanisms, essential for designing materials and coatings with enhanced corrosion resistance [71].

D. Integrative Applications of EIS, SEM and XRD

The combined use of EIS, SEM, and XRD offers a comprehensive approach to corrosion detection and monitoring. EIS provides electrochemical data on corrosion rates and mechanisms, SEM offers detailed visual and elemental analysis of corrosion morphology, and XRD identifies the crystalline phases of corrosion products. Together, these techniques enable a thorough understanding of corrosion processes, facilitating the development of effective prevention and mitigation strategies.

For example, in studying the corrosion behavior of coated metals, EIS can detect changes in impedance indicative of coating degradation. Subsequent SEM analysis can reveal the presence of micro-cracks or delamination, while XRD can identify any crystalline corrosion products formed beneath the coating. This integrative approach allows for the identification of failure mechanisms and the optimization of coating formulations for improved performance [72].

In conclusion, the detection and monitoring of corrosion are critical for ensuring the longevity and safety of materials in various industries. Techniques such as EIS, SEM, and XRD provide complementary data that, when combined, offer a holistic understanding of corrosion phenomena. The continued advancement and application of these methods are essential for developing robust strategies to combat material degradation.

2. Electrolyte Optimization

Electrolytes play a crucial role in battery performance and longevity. The composition of electrolytes can significantly impact the corrosion behavior of battery components. Strategies for electrolyte optimization include:

a) Stable Electrolyte Formulations

Formulating electrolytes with corrosion-resistant properties is essential for long-term battery stability. Non-aqueous electrolytes, particularly those based on lithium hexafluorophosphate (LiPF6) in organic solvents, are widely used in LIBs. However, LiPF6 is prone to hydrolysis, producing hydrofluoric acid (HF), which accelerates corrosion [72]. Alternative salts such as lithium bis(fluorosulfonyl)imide (LiFSI) and lithium difluoro(oxalato)borate (LiDFOB) exhibit superior stability and lower corrosivity [73].

b) pH and Water Content Control

In aqueous battery systems, controlling pH and water content is critical. High pH levels can lead to metal dissolution, whereas excessive water content accelerates electrode corrosion. Electrolyte additives and buffering agents help maintain optimal pH and reduce corrosion rates [74].

3. Additives to Inhibit Corrosion

Electrolyte additives are incorporated to suppress corrosion mechanisms within battery systems. These additives function by forming passivation layers, neutralizing corrosive species, or modifying electrode-electrolyte interactions.

a) Solid-Electrolyte Interphase (SEI) Enhancers

SEI layers form on anodes to prevent further degradation. Additives such as vinylene carbonate (VC) and fluoroethylene carbonate (FEC) improve SEI stability, reducing corrosion-related failures [75].

b) Corrosion Inhibitors

Specific inhibitors such as phosphates, borates, and sulfates act by adsorbing onto metal surfaces, forming protective films that impede corrosion. In LIBs, phosphate-based inhibitors (e.g., lithium difluorophosphate) are particularly effective in mitigating metal dissolution [76].

In tandem, solid-state electrolytes have emerged as crucial components in corrosion monitoring technologies, offering stable electrochemical properties and robust ion conductivity that enhance the functionality of sensor systems. This ensures consistent performance across diverse environmental conditions. Moreover, self-healing coatings and materials represent a transformative approach to corrosion prevention, possessing the intrinsic ability to autonomously repair micro-damages[67].

This functionality extends the longevity of protective coatings and minimizes the need for frequent maintenance interventions, particularly in aerospace, marine, and infrastructure sectors where continuous exposure to harsh environments accelerates material degradation. The integration of artificial intelligence and machine learning into corrosion monitoring systems has introduced a paradigm shift in predictive maintenance strategies. AI-driven systems can analyze vast datasets generated from real-time monitoring to identify early-stage corrosion phenomena and predict future degradation patterns with high accuracy. These intelligent systems utilize algorithms capable of processing complex environmental and material interaction data, enabling the early detection of structural vulnerabilities and optimizing maintenance schedules. [2]For instance, AI-enhanced models, such as neural networks and machine vision systems, have been effectively employed to monitor pipelines, chemical storage units, and offshore structures, significantly reducing operational risks and maintenance costs.[3] Furthermore, the development of cost-effective corrosion monitoring technologies, particularly those employing microcontrollers like Arduino, has democratized access to sophisticated monitoring systems. These low-cost sensors, coupled with data acquisition platforms, enable continuous surveillance in industrial settings, providing real-time feedback on structural health. Collectively, the advancements in corrosion-resistant materials, self-healing technologies, solid-state electrolytes, and AI-driven monitoring frameworks represent a comprehensive approach to enhancing the resilience of critical infrastructure.

Furthermore, the development of cost-effective corrosion monitoring technologies, particularly those employing microcontrollers like Arduino, has democratized access to sophisticated monitoring systems. These low-cost sensors, coupled with data acquisition platforms, enable continuous surveillance in industrial settings, providing real-time feedback on structural health. Collectively, the advancements in corrosion-resistant materials, self-healing technologies, solid-state electrolytes, and AI-driven monitoring frameworks represent a comprehensive approach to enhancing the resilience of critical infrastructure.

9. Challenges and Future Directions

The development and implementation of advanced corrosion-resistant materials and monitoring systems face complex challenges, particularly when transitioning from laboratory research to large-scale industrial applications. A primary obstacle is striking a balance between cost and performance. While cutting-edge technologies, such as nanostructured coatings and AI-driven monitoring systems, offer significant improvements in corrosion protection and detection, their high production costs hinder widespread adoption. Advanced corrosion inhibitors, including hybrid and eco-friendly options, pose economic viability concerns due to complex synthesis routes or expensive raw materials.[84] Optimizing cost-performance requires innovative approaches, such as integrating low-cost, sustainable materials with high-performance polymers or employing machine learning algorithms to optimize maintenance schedules. Another critical consideration is the environmental and sustainability impact.

Traditional corrosion inhibitors have raised significant ecological concerns due to their toxicity and persistence. In response, research has focused on developing eco-friendly corrosion inhibitors, including plant-derived compounds and biodegradable polymers. However, ensuring the long-term stability and performance of these green inhibitors under fluctuating environmental conditions remains a challenge. [85]Scaling from laboratory conditions to commercial applications poses another significant challenge.

5. H. Zhang, X. Li, Y. Wang, & J. Chen. (2020). Aluminum corrosion in lithium-ion battery electrolytes: Mechanisms and mitigation strategies. Journal of Power Sources, 450, 227650.

6. R. K. Gupta, M. S. Islam, & P. Singh. (2021). Influence of electrolyte composition on aluminum current collector corrosion in lithium-ion batteries. Electrochimica Acta, 367, 137-146.

7. J. T. Verde, & K. J. Stevenson. (2022). Galvanic corrosion in lead-acid batteries and its implications for battery longevity. Electrochimica Acta, 320, 134871.

8. S. H. Lee, H. Y. Park, & D. W. Kim. (2023). Electrochemical interactions in hybrid battery systems: Galvanic corrosion effects. Energy Storage Materials, 45, 23-35.

9. L. M. Zhou, X. G. Yang, & C. Y. Wang. (2022). Graphene-based anti-corrosion coatings for lithium-ion batteries. Advanced Materials, 34(6), 2104532.

10. T. K. Hansen, P. R. Brown, & J. D. Evans. (2021). Electrochemical stability of nickel-coated copper current collectors in lithium-ion batteries. Journal of the Electrochemical Society, 168(12), 120511.

11. M. A. Rahman, N. K. Roy, & S. P. Biswas. (2023). Self-healing coatings for corrosion protection in energy storage devices. ACS Applied Materials & Interfaces, 15(10), 17823-17835.

12. Y. Zhang, L. Wang, & X. Liu. (2020). Corrosion mechanisms in lithium-ion batteries: Impact of electrolyte leakage on battery components. Electrochimica Acta, 330, 135256.

13. J. Kim, H. Lee, & S. Park. (2021). Decomposition of lithium hexafluorophosphate in humid environments and its effect on battery performance Journal of Power Sources, 456, 227899.

14. T. Brown, & M. Green. (2019). Electrochemical degradation in lead-acid batteries: Corrosion effects of sulfuric acid leakage. Battery Research Journal, 17(4), 315-327.

15. K. Nakamura, P. Singh, & R. Jones. (2022). Alkaline corrosion in nickel-metal hydride batteries due to electrolyte leakage. Journal of Electrochemical Science and Engineering, 12(2), 112-123.

29. X. Zhang, W. Shyy, & A. Marie Sastry. (2007). Numerical simulation of intercalation-induced stress in Li-ion battery electrode particles. J. Electrochem. Soc., 154(10), A910-A916.

30. M. Metzger, M. Badway, D. G. Lutz, & B. L. Lucht. (2016). Role of electrolyte decomposition in the performance of high-voltage lithium-ion batteries. Electrochem. Commun., 63, 18-21.

31. Y. Zhang, X. Zeng, & G. Liang. (2019). Aluminum corrosion in lithium-ion batteries: Mechanisms and mitigation strategies. J. Power Sources, 412, 37-49.

32. J. Garche, & A. Jossen. (2002). Battery behavior and properties as a function of temperature. J. Power Sources, 105(2), 200-211.

33. D. Pavlov. (2011). Lead-acid batteries: Science and technology. Elsevier.

34. S. Randau et al. (2020). Interfacial stability of lithium metal solid-state batteries: A review. ACS Energy Lett., 5(7), 2292-2304.

35. Y. Zhu, X. He, & Y. Mo. (2017). Origin of outstanding stability in the lithium solid electrolyte materials. Chem. Mater., 29(21), 9478-9485.

36. J. Vetter, P. Novák, M. R. Wagner, C. Veit, K. C. Möller, J. Besenhard, M. Winter, M. Wohlfahrt-Mehrens, C. Vogler, & A. Hammouche. (2005). Ageing mechanisms in lithium-ion batteries. Journal of Power Sources, 147(1-2), 269–281.

37. P. Verma, P. Maire, & P. Novák. (2010). A review of the features and analyses of the solid electrolyte interphase in Li-ion batteries. Electrochimica Acta, 55(22), 6332–6341.

38. D. Pavlov. (2011). Lead-acid batteries: science and technology. Elsevier Science.

39. M. M. Thackeray, C. Wolverton, & E. D. Isaacs. (2012). Electrical energy storage for transportation—approaching the limits of, and going beyond, lithium-ion batteries. Energy & Environmental Science, 5(7), 7854–7863.

40. J. Nanda, L. Yang, J. T. Vaughey, & M. M. Thackeray. (2012). Cathode materials for lithium-ion batteries: an overview. Electrochemical Society Interface, 21(2), 35–42.

41. Y. Sun, N. Liu, & Y. Cui. (2016). Promises and challenges of nanomaterials for lithium-based rechargeable batteries. Nature Energy, 1(7), 16071.

55. A. Gupta, & M. P. Balogh. (2023). Aluminum corrosion in lithium-ion batteries: Challenges and solutions, Journal of Power Sources, 520, 230412.

56. D. Zhang et al. (2021). Conductive polymer coatings for battery protection. Progress in Materials Science, 98, 275-310.

57. T. Shibata et al. (2023). Ceramic coatings for lithium-ion battery electrodes: A review. Electrochemical Society Transactions, 104(5), 45-58.

58. K. Liu, & Y. Zhao. (2023). Graphene-based coatings for battery applications: Corrosion resistance and conductivity. Carbon, 198, 112307.

59. P. Novak et al. (2022). Electrolyte decomposition and its effect on lithium-ion battery performance. Journal of the Electrochemical Society, 170, 123510.

60. R. McMillan et al. (2022). Lithium salt alternatives for improved electrolyte stability. Energy Storage Materials, 36, 87-102.

61. M. Singh, & S. Patel. (2023). Aqueous electrolyte optimization for corrosion control in zinc-based batteries. Journal of Applied Electrochemistry, 54, 178-192.

62. H. Wu et al. (2023). SEI layer stability and its impact on battery lifespan. Advanced Energy Materials, 12, 2104325.

63. J. Kim et al. (2023). Phosphate-based inhibitors for lithium-ion batteries. Electrochimica Acta, 415, 140315.

64. L. Zhou et al. (2023). Ionic liquid electrolytes for advanced battery systems. Journal of Power Sources, 530, 231147.

65. C. Huang et al. (2022). Thermal management in lithium-ion batteries: Challenges and solutions. Applied Thermal Engineering, 195, 117052.

66. Y. Sun et al. (2022). Overcharge protection mechanisms in lithium-ion batteries. Journal of Electrochemical Energy Conversion, 22, 210301.

67. S. Ahmed et al. (2023). Real-time corrosion monitoring in battery management systems. Sensors and Actuators B: Chemical, 379, 133028.
